Tower Flue Components

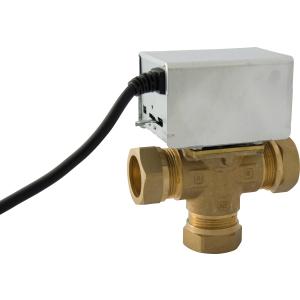

3-Port Motorised Mid Position Valve 22 mm

Regular price £108.89 GBP
Regular price Sale price £108.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
A mid-position motorised zone valve supplied with 22mm compression fittings. It is to be used for the flow control of central heating or hot water in 'Y plan' central heating systems. The valve operates in conjunction with inputs from a room thermostat or a cylinder thermostat. It will open only when in demand from the thermostat with the action of a geared synchronous motor and closes by a spring return mechanism. When the valve is in the open position, a limit switch operates to switch on the heat source. By doing this it regulates flow simultaneously for hot water and central heating. Please note that this valve must be installed according to the direction of the flow as indicated by the arrow on the valve body. It is only suitable for open vented or sealed pumped systems. The valve comes with a 5 core colour coded flexible cable at a length of 1 metre for ease of installation. Power consumption of the unit at 6W, with a temperature range of 5°C to 88°C and a maximum differential pressure of 1 Bar. Both the actuator head and synchronous motor are replaceable.

  • 22mm 3 port mid position motorised zone valve
  • Operating temperature range of 5°C to 88°C
  • Supply voltage: 220-240V AC 50Hz
  • Power consumption: 6W
  • 1 metre cable length
